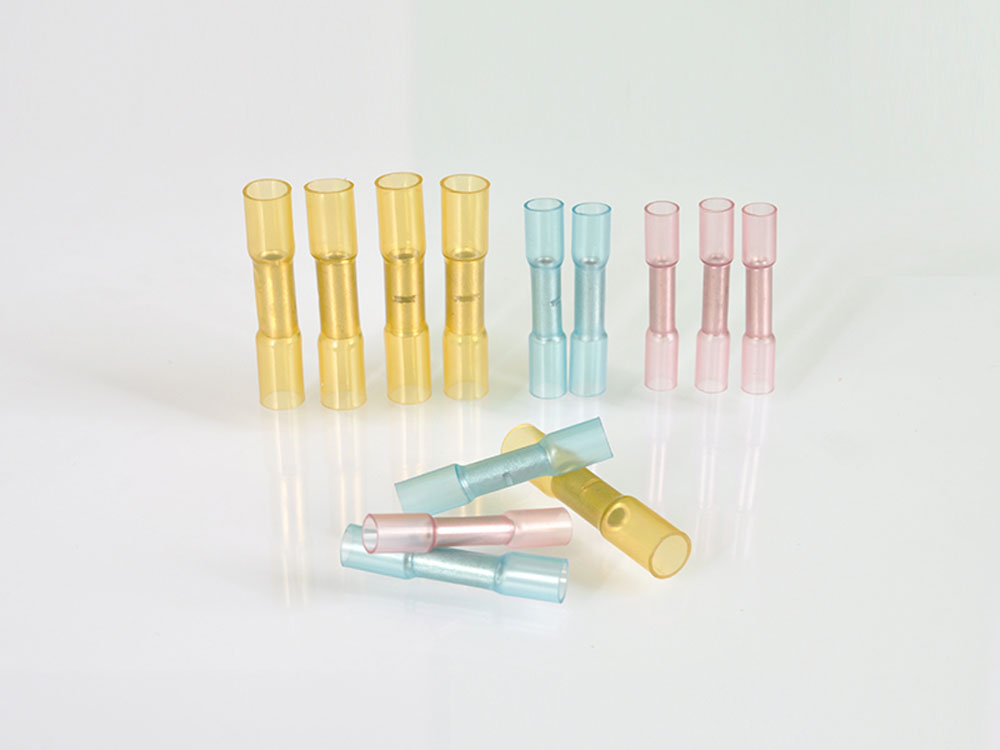

高透明中接端子

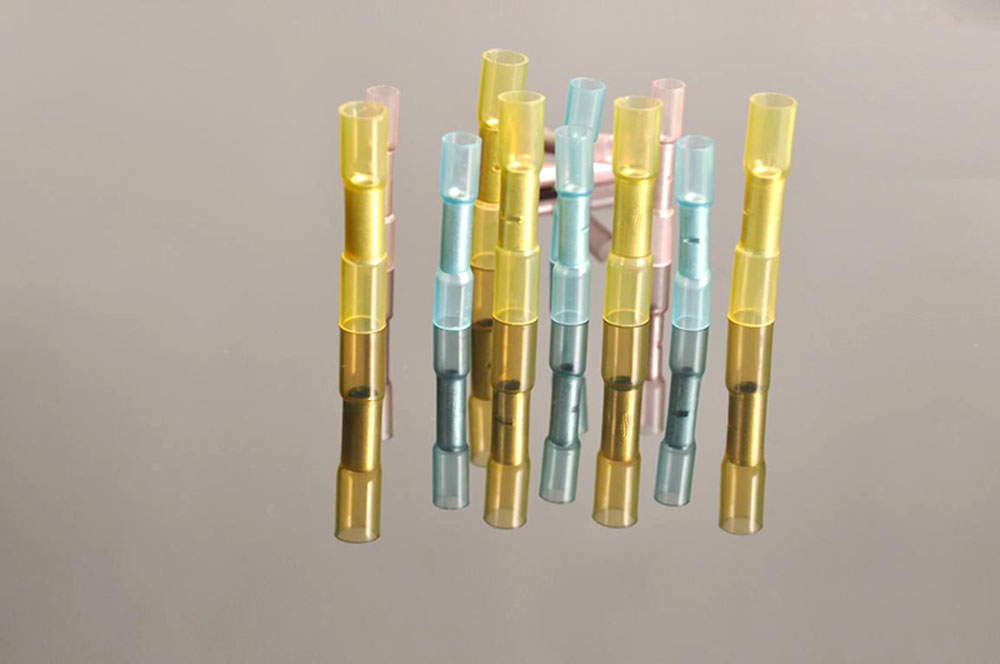

高透明中接端子
應用
HCS-H是由聚烯烴和熱熔膠復合而生成的熱收縮套管，對PVC,PE,金屬粘接力強，用于保護連接、防水防腐蝕，可以在粗糙的環境中加強固定和防震動，具有很好的絕緣保護電子連接器的功能。與常規的連接器相比，具有耐久性、易于安裝、安裝成本低的優勢。
特性 收縮率3：1 含熱熔膠具防水性能 材料優異的延伸性能，抗機械損害 透明度佳及良好的外管 高彈性能，管材不易變形 | 操作溫度范圍 操作溫度: -40℃～105℃ 開始收縮溫度: 60℃ 最低完全收縮溫度: 100℃ |
性能參數
Test Item | Characteristics | Test condition | |
Unaged | Tensile strength | Min. 18MPa | Room temp. |
Aged
| Elongation | Min. 200% | |
Tensile strength | Min. 11.5MPa | 150℃/7 days | |
Elongation | Min. 100% | ||
Voltage withstand and breakdown Voltage(Unaged) | Withstand 2.5 KV for 1minute and breakdown | Room temp. | |
Voltage withstand and breakdown Voltage(Aged) | Withstand 2.5 KV for 1minute and breakdown at least half of unaged breakdown voltage | 150℃/7 days | |
Copper corrosion | No corrosion of bare copper | 150℃/7 days | |
Copper stability | No sign of degradation Min.Elongation 100% | 150℃/7 days | |
Cold bend | No crack | -40℃/4 hrs | |
Heat shock | No crack | 200℃/4 hrs | |

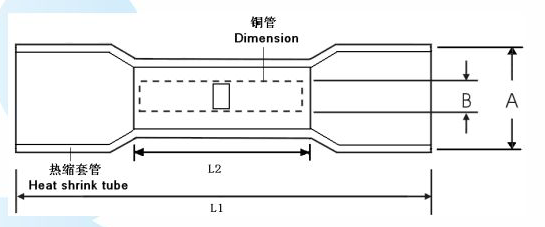

產品規格
Part. No |
Wire Range | Copper Pipe | Heat shrink tube |
Insulator |
Color |
Approval | |||||
A.W.G | mm2 | OD | ID | L2 | OD | ID | L1 | ||||
HSC-H-1 | 22-18 | 0.5-1.0 | 3.8 | 1.7 | 15 | 6.1 | 5.0 | 36.0 | PE | Red | RoHS |
HSC-H-2 | 16-14 | 1.5-2.5 | 4.8 | 2.4 | 15 | 7.2 | 6.0 | 36.0 | PE | Blue | RoHS |
HSC-H-3 | 12-10 | 4.0-6.0 | 5.7 | 3.6 | 15 | 8.3 | 7.0 | 42.0 | PE | Yellow | RoHS |
