裸纖保護套管
裸纖保護套管
應用
本產品由聚烯烴制成，專門為配線架/交接箱內裸光纖而設計的保護元件;
特性 韌性強，操作簡單，降低安裝時損傷光纖的危險 工作溫度高，使用范圍廣 形狀多樣，適合用于各種裸光纖 | 操作溫度范圍 操作溫度: -55℃~100℃ 最低熔化溫度: 120℃ |
性能參數
Performance | Test Method | Typical data |
Operating temperature | IEC 216 | -55?C~100?C |
Tensile strength | ASTM D 2671 | 18MPa |
Elongation at break | ASTM D 2671 | 700% |
Density | ISO R1183D | 0.94g/cm3 |
Dielectric strength | IEC243 | 25KV/mm |
volume resistance | IEC243 | 1015Ω.cm |
Length changes | ASTM D 2671 | ±5% |
產品規格

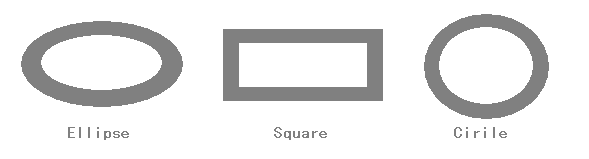

Part No | ID or High* (mm) | WT(mm) | Shape | Packing |
BFPS1400 | 1.4 | 0.3 | ○ | 500m/r |
BFPS2000 | 2.0 | 0.5 | ○ | 300m/r |
BFPS3500 | 3.5 | 1.0 | ○ | 100m/r |
BFPS2434 | 2.4*3.4 | 1.0 | □ | 100m/r |
BFPS3050 | 3.0*5.0 | 1.0 | □ | 100m/r |
